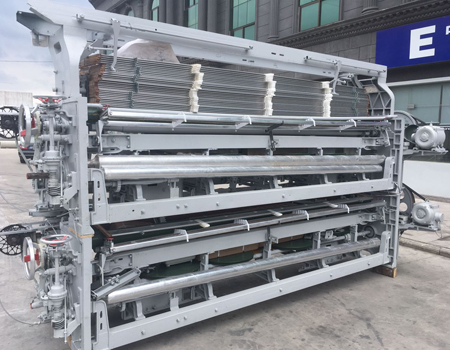

Basic Working Principle of Rapier Looms

The rapier loom is a typical shuttleless loom that uses a slender rapier (rigid rod or flexible band) to carry the weft yarn through the shed formed by the warp yarns, thus inserting the weft. The operating cycle of the loom consists of three main steps: shedding, weft insertion, and beating-up. First, a cam, multi-arm mechanism, or jacquard machine controls the warp yarns to separate up and down to form the shed, thereby providing a channel for the weft. Next, the rapier clamps the weft yarn and moves back and forth at high speed, accurately delivering the weft into the shed and transferring it to the other side of the loom. Finally, the reed beats the newly inserted weft to the fabric edge, ensuring the weft binds tightly with the existing fabric. This cycle repeats continuously while the warp feeding system (which maintains warp tension and supplies new warp yarn) and the roll-up mechanism (which draws the woven cloth onto the roll) work together to ensure continuous weaving. Modern rapier looms are usually equipped with electronic control systems that synchronize and precisely control every step to guarantee both weaving efficiency and fabric quality.

Main Components and Functions

Warp Beam and Warp Feeding Mechanism

Located at the rear of the frame, it stores the warp yarn and maintains constant tension to supply the weaving area. The feeding mechanism uses tension sensors and feed devices to ensure the warp is released as needed.

Shedding Mechanism

This consists of the harness (healds) and the lifting mechanism (cam, multi-arm, or jacquard machine) that control the rise or fall of specific warp yarns according to the fabric design, forming the shed. Additional devices, such as jacquard systems, can independently control the warp for creating complex patterns.

Weft Insertion Mechanism (Rapier System)

The core part of the rapier loom includes components like the rapier head and the rapier band. In double-rapier looms, there is typically one rapier head on each side of the shed (left and right) that clamp the weft and exchange it in the middle—this is key to weft insertion. The rapier head is connected to the drive mechanism via a rigid rod or flexible band and moves back and forth under mechanical or electronic cam control, carrying the weft through the shed. Modern rapier head designs are compact, allowing a smaller shed opening angle that reduces warp tension and broken ends.

Weft Supply and Color Selection Device

The weft is usually provided from bobbins on the creel. Each weft yarn, after having its tension adjusted by a constant tension device and a weft accumulator, is held in readiness for insertion. The color selection mechanism, following a preset color sequence, chooses the designated weft to be clamped by the rapier and fed into the shed. Modern rapier looms often use microcomputer control for color selection, supporting up to 6–8 kinds of weft yarn and achieving automatic alternation for multi-colored fabrics.

Beating-Up Mechanism

Comprising the reed, reed frame, and driving linkages, after each weft insertion the beating-up mechanism pushes the reed forward at high speed, forcing the new weft against the fabric edge so that the yarns bond tightly. The width of the reed also determines the fabric’s overall width, and the reed density influences the warp density.

Roll-Up and Cloth Winding

The woven fabric is drawn by the front beam’s drawing roller and guided onto a cloth roll, while the warp feeding mechanism at the rear beam releases new warp yarn to ensure the fabric remains uniformly tight.

Detection and Safety Devices

These include automatic stop devices for warp breakage and weft detectors. When a warp breaks, sensors detect the falling yarn and stop the machine immediately; if the weft is not successfully inserted, photoelectric sensors trigger a stop. Such devices ensure fabric quality by preventing the spread of defects. Modern looms are also equipped with intelligent monitoring systems that collect operational data in real time, so that any abnormality triggers an alarm and an automatic shutdown.

Comparison with Other Loom Types

Versus Shuttle Looms

Traditional projectile looms use wooden shuttles that travel back and forth to carry the weft, resulting in slower speeds and greater noise and vibration. The rapier loom eliminates the heavy shuttle by using a lightweight rapier to clamp the yarn, greatly improving weft insertion speed and stability. It operates faster and is better suited for large-scale production. Additionally, it adapts to a wider variety of yarns—including fine, easily broken yarns—whereas shuttle looms have more limitations. Moreover, shuttles in projectile looms wear out and require frequent replacement, whereas the moving parts of the rapier system are smaller and need less frequent maintenance.

Versus Air-Jet Looms

Air-jet looms use compressed air to blow the weft yarn at high speed, achieving extremely high weft insertion speeds and productivity, with some 190 cm wide models reaching up to 1200 rpm. In contrast, the rapier loom runs at a slightly lower speed (modern models about 500–700 rpm). However, thanks to its mechanical clamping, the rapier loom delivers higher precision in weft placement and more refined control—especially advantageous when weaving complex patterns or high-count yarns. In terms of energy consumption, the rapier loom is driven solely by electric motors and mechanical components, making it more energy efficient compared to air-jet looms, which require large amounts of compressed air. This makes the rapier loom a more attractive option for producers looking to reduce energy costs while maintaining quality.

Versus Water-Jet Looms

Water-jet looms use water to pull the weft yarn, achieving speeds comparable to air-jet looms, but they are only suitable for fibers like synthetic filaments that are not adversely affected by water. Natural fibers such as cotton, wool, or linen cannot be woven with water-jet looms, whereas the rapier loom can handle nearly any type of yarn, whether natural or synthetic. Furthermore, water-jet looms consume large amounts of water, limiting their use in areas with scarce water resources or stringent environmental regulations. The rapier loom does not have this drawback and is more environmentally friendly.

Versus Projectile (Throw Shuttle) Looms

Projectile looms, such as the Sulzer throw shuttle loom, use small metal guides (projectile shuttles resembling pellets) to “throw” the weft yarn through the shed. They were once famous for weaving extra-wide and heavy fabrics, making them suitable for products like canvas and carpets. However, projectile weft insertion is intermittent and limits high-speed performance—generally operating at around 400 rpm. The rapier loom, by continuously clamping and transferring the weft, achieves smoother high-speed operation. Its simpler structure and ease of adjustment have gradually led to its replacement of projectile looms in most fields, although projectile looms still retain niche applications for ultra-wide and specialty fabrics. Overall, the rapier loom combines flexibility and efficiency, making it the mainstream choice in modern weaving.

Main Functions and Advantages

Applicability to Various Textiles

Due to its broad adaptability, the rapier loom can weave almost all types of textiles. It is capable of handling everything from lightweight silks, chiffons, and shirt fabrics to heavy woolens, denims, and decorative fabrics. There is no strict limitation on yarn thickness or material; whether using natural fibers (cotton, wool, linen, silk) or synthetic filament yarns—even special fibers like metallic or fiberglass—the weaving is achieved by adjusting the rapier’s clamping and tension. This is particularly true for multi-colored weft fabrics, such as jacquard or decorative fabrics, where the loom can be equipped with over eight weft feeders and use electronic color selection to alternate colors, producing richly colored fabrics. In addition, certain double-layer or looped fabrics (for example, towels) can be produced by adding special devices (such as dual shedding mechanisms or pick-up devices) to the rapier loom, demonstrating its extensive range of applications.

Weaving Process Characteristics

• Smooth Weft Insertion:

The rapier mechanically clamps the weft yarn and carries it through the shed under complete control, rather than relying on a fluid medium as in air-jet or water-jet systems. As a result, the weft yarn is less likely to deviate or bend within the shed, ensuring neatly arranged weft yarns and a uniformly smooth fabric. This reliable weft insertion is especially important for high-count or fragile yarns.

• Multi-Color Weft and Complex Structures:

The rapier loom facilitates the installation of multiple color selectors and jacquard devices, enabling the weaving of fabrics with complex patterns such as multi-colored plaids, jacquard curtains, and decorative fabrics. Each weft can be chosen in a different color according to a preset program and, combined with on-machine jacquard, can create rich and varied patterns. This versatility is difficult to achieve with air-jet or water-jet systems.

• Gentle on Warp Tension:

The small shed opening required for rapier insertion—especially with modern, compact rapier head designs—minimizes the deformation of the warp yarn. This reduces the repetitive bending stress on the warp, lowers the breakage rate, and is beneficial for weaving high-density, high-count fabrics.

• Neat Fabric Edging:

Rapier looms are typically equipped with edging or trimming devices that form tight fabric edges (such as selvages or bound edges). Some models also include auxiliary devices (for example, rapier head clamps, cutting tools, and waste edge winders) to ensure the edges remain neat and do not loosen. This results in cleaner and more stable fabric edges compared to air-jet looms, which often rely on nozzle control for the weft tail.

• Noise and Vibration:

Although the moving parts of the rapier loom are small and operate smoothly, the high-speed reciprocating motion still produces noise and vibration levels that lie between those of shuttle looms and air-jet looms. Modern designs optimize the frame structure and include balancing devices to minimize noise and improve the working environment.

• Production Efficiency and Weaving Quality:

In terms of production efficiency, rapier looms represent a several-fold improvement over traditional shuttle looms. A high-speed rapier loom can typically run at over 500 rpm—far exceeding the few dozen rpm of conventional wooden shuttle looms. Moreover, one operator can supervise multiple machines, reducing labor costs. Although air-jet looms (especially older models) can operate at speeds ranging from 800 to 2000 rpm, recent improvements—such as upgrading from crank drives to cam drives and using lighter components—have increased the speed of rapier looms to around 600–700 rpm. In production, the optimal operating speed is adjusted according to the fabric type: heavier fabrics may be woven at around 400 rpm to ensure quality, while lighter fabrics can be produced at speeds above 600 rpm.

Regarding weaving quality, rapier looms are known for producing fabrics with few defects and consistent quality. Their reliable weft insertion minimizes issues such as missing or double wefts, and the precise control of warp and weft densities ensures uniformity. Additionally, electronic controls allow for real-time adjustments to tension and speed, further enhancing the consistency of fabric quality. Overall, rapier looms achieve a balance between efficiency and quality—they can operate at medium to high speeds while meeting high-quality standards, making them the primary machines widely used in textile mills.

Rapier Loom Classification

By Rapier Type

Rapier looms are divided into single-rapier and double-rapier types. Single-rapier looms have a rapier on only one side, which directly inserts the weft from one side to the other, making them suitable for narrow-width special fabrics—such as carbon fiber spread tow fabric and certain 3D weavings with high-performance fibers. Double-rapier looms, on the other hand, have a rapier on each side of the shed; typically, one rapier (the feeding rapier) delivers the weft to the center of the fabric while the other (the receiving rapier) catches and draws it out. The coordination of the two rapiers greatly increases the machine’s width capacity, and today, the vast majority of rapier looms are double-rapier types, offering reliable weft insertion and high efficiency.

By Rapier Flexibility

Depending on the form of the rapier itself, looms can be classified as having either rigid or flexible rapiers. Rigid rapiers are usually metal rods or carbon fiber rods with a sturdy structure, making them suitable for weaving extra-heavy fabrics (such as carpets or thick canvases). These were widely used in the early days, but at high speeds, the larger shed opening required and the greater mechanical impact limit their performance. Today, rigid rapiers are mainly retained in special-purpose machines, such as carpet weaving. Some rigid rapier looms even use two sets of rapiers (two receiving rapiers and two sending rapiers) to weave hollow or cut-pile fabrics. Flexible rapiers use thin metal bands or composite strips as carriers, with the rapier head sliding along a guide rail, making them well suited for large-scale production of medium to fine fabrics. Flexible rapiers provide smoother transmission and have clear advantages at high speeds; therefore, modern high-speed rapier looms are mostly of the flexible type. Some models even feature “double bands,” where both the left and right rapiers are flexible, further reducing noise and vibration.

Industry Significance of Rapier Looms

Core Role

Due to their broad adaptability and high weaving quality, rapier looms have become indispensable core equipment in textile production. They are the most widely used type of shuttleless loom in the world. Whether in cotton, woolen, home, or industrial textiles, rapier looms are ubiquitous. From combed cotton fabrics and printed plaids to decorative fabrics and industrial filter materials, rapier looms cover nearly every category of woven product. Consequently, a textile mill’s competitiveness largely depends on the advancement and configuration of its key equipment, including rapier looms.

Contribution to Increased Efficiency

The widespread adoption of rapier looms has dramatically increased production efficiency in traditional weaving. Compared with shuttle looms, rapier looms run at several times the speed, with weft changes occurring without stopping the machine—greatly reducing the time needed to produce a given fabric. For example, in twill cotton fabric, shuttle looms can insert only about 150–200 wefts per minute, whereas modern rapier looms can achieve over 500, effectively multiplying production capacity. Furthermore, the reliable automatic control of rapier looms reduces downtime and waste: if the weft fails to be inserted or a warp breaks, the machine stops immediately, preventing long runs of defective fabric and increasing effective operating time. Additionally, by eliminating the frequent need to change or load shuttles, rapier looms significantly reduce operator labor intensity, allowing one person to monitor several machines. Even though the number of machines an operator can supervise may be lower than with air-jet looms (due to slightly more adjustment and maintenance work), the improvement over traditional looms is substantial. Overall, rapier looms enhance textile production efficiency by speeding up production, reducing downtime, and saving labor.

Cost Reduction

The use of rapier looms also helps lower operational costs. First, energy consumption is relatively controllable—the loom is driven by an electric motor and mechanical components, so the energy used per unit of fabric is generally lower than that of air-jet looms that require compressed air. Some new rapier looms employ direct-drive motors and energy recovery technologies, which further improve energy efficiency and reduce waste. Second, maintenance costs are lower; key components are designed for durability, have long lifespans, and are highly interchangeable, with many brands even offering lifetime spare parts services. Daily maintenance mainly involves replacing wear parts, which is less costly than maintaining the electronically complex air-jet looms. Finally, the wide raw material adaptability of rapier looms means that manufacturers can use a broader range of yarns—including less expensive varieties—rather than being limited to high-quality yarns, thus reducing material costs. Additionally, the multi-functionality of the machine allows manufacturers to flexibly adjust production without needing separate machines for different fabric types, thereby reducing equipment investment and space. In summary, thanks to high productivity, energy efficiency, and wide adaptability, rapier looms help textile enterprises produce diverse products at lower unit costs, playing a crucial role in reducing costs and increasing efficiency in the industry.
